Smart Folding Door (For Residential Facilities)F Z - S F 5 7
Smart Folding Door (For Residential Facilities)

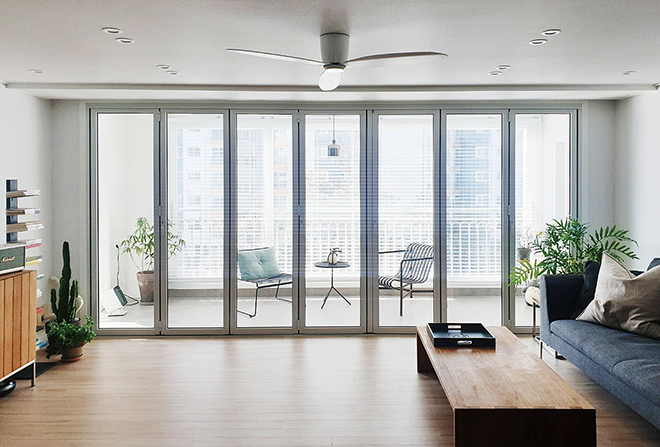

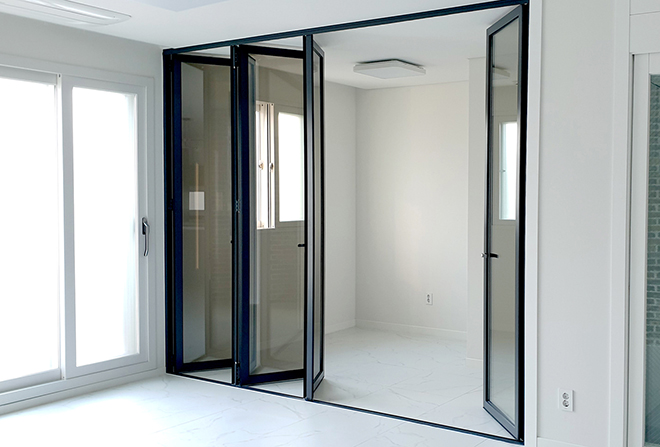

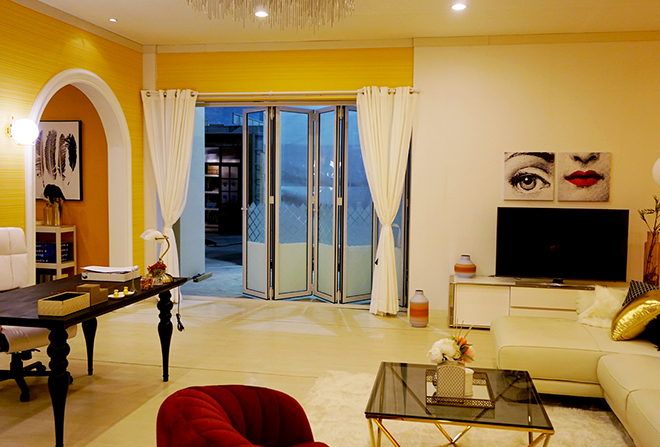

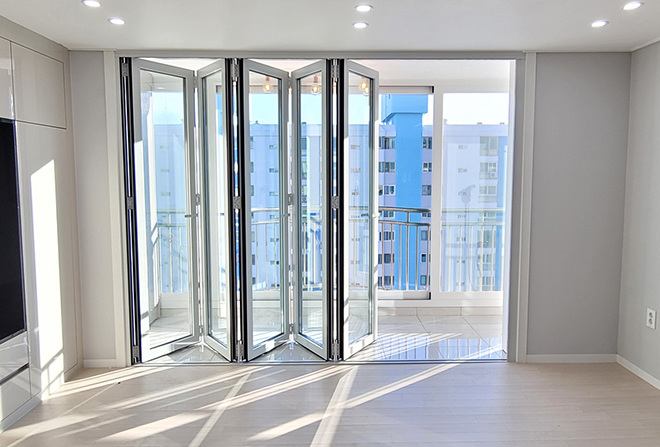

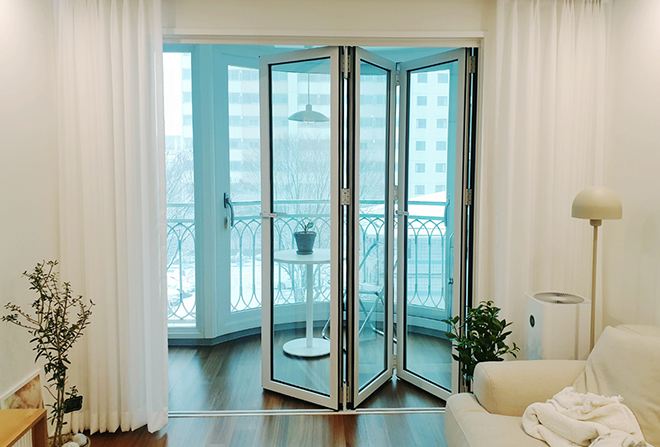

Folding doors suitable for residential facilities; Applicable to areas where the living room and the balcony are extended so that doors cannot be buried on the floor; Convenient to use at home due to a low level of exposure and smooth opening and closing.
Product Details
| Model | Indoor / Outdoor | Frame material | Aluminum (AL.6N01) profile |
| Max. door Width | 800mm | Coating | Fluororesin coating |
| Max. door Height | 3200mm | Colors | Black, White, Silver, others |
| Max. number of panels | 30 (right, left: 15 panels each) | Running Device | Upper/lower track runner |
| Glass size | 8mm, 16mm, 22mm, 24mm | Locking device | Standard smart handle |
| Glass type | Tempered glass, Transparent glass, Insulated glass, etc | Locking type | Simultaneous upper and lower tightening |
-
Upper Rail
Made of high-strength aluminum alloy (AL-6N01) to reduce damage and wear; features polyamides insulation; the upper runner is designed to serve as a guide.
-

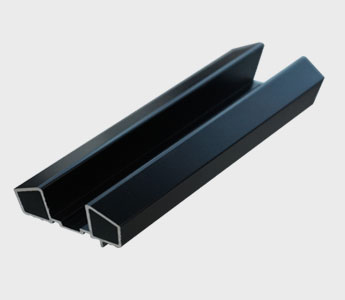

Lower Rail
Made of high-strength aluminum alloy (AL-6N01) to reduce damage and wear; features polyamides insulation; the lower runner is designed to serve as a guide.
-
Upper Rail + Runner
Features high-strength aluminum alloy (AL-6N01); the bearing rollers, mounted on the rail, ensures smooth opening and closing.
-

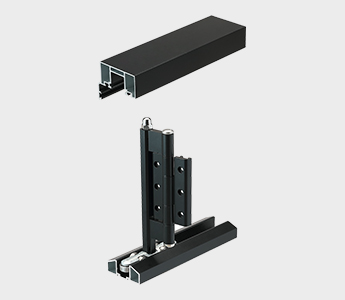

Lower Rail +
Middle Bar SetFeatures high-strength aluminum alloy (AL-6N01); the bearing rollers, mounted on the rail, ensures smooth opening and closing; designed to prevent the runner from coming off the rail, for safety purpose.

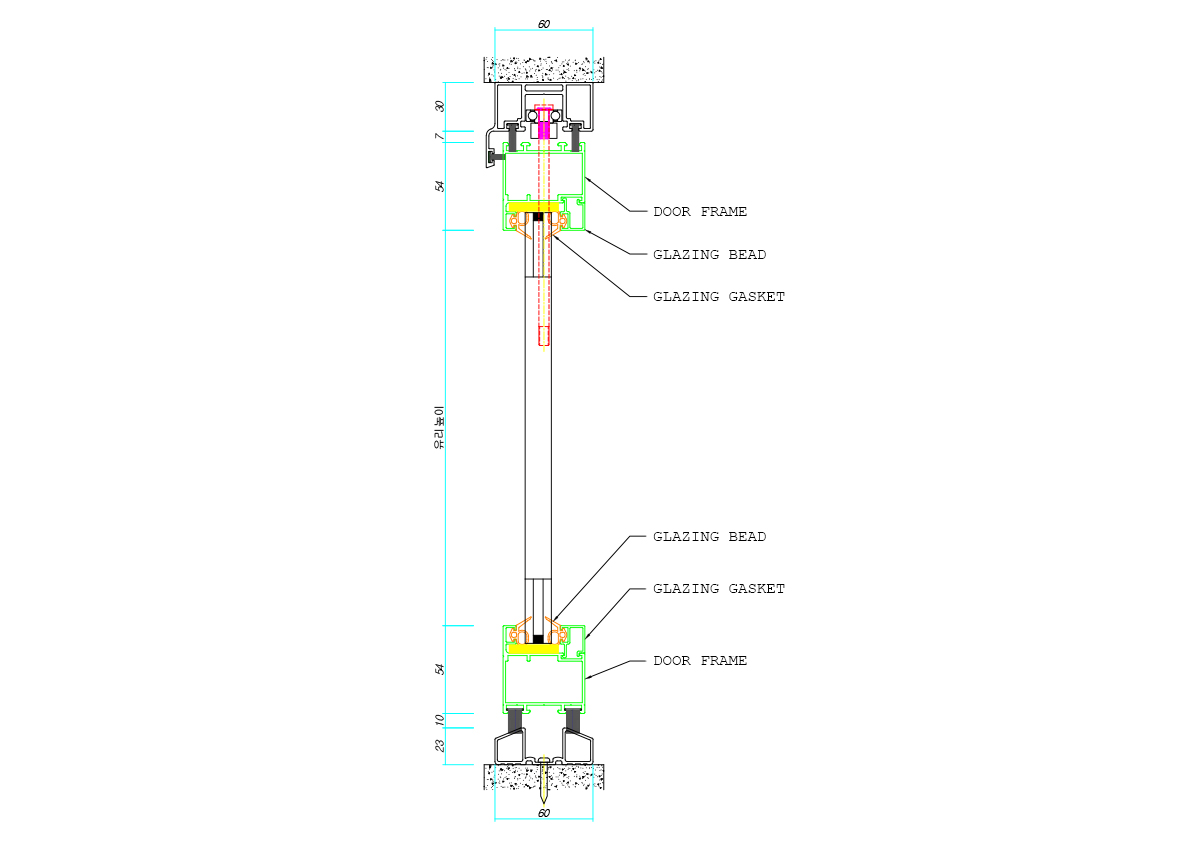

Design Drawing
