SMART FOLDING DOOR

BEGINNING OF A NEW FOLDING, FOLZEN

Smart Folding Door (Window Type)F Z - S F 4 0

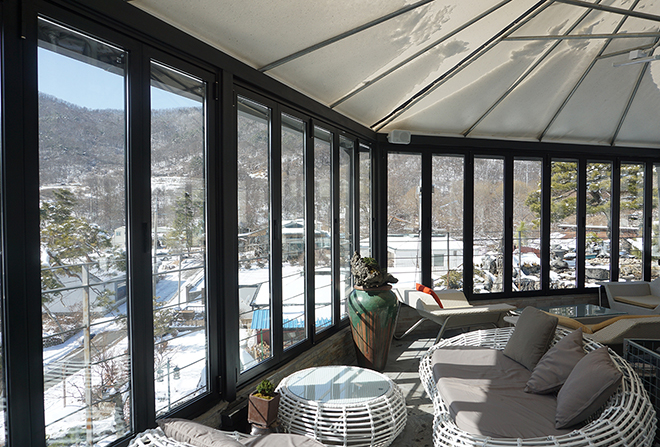

  • Smart Folding Door(Window Type) Image1

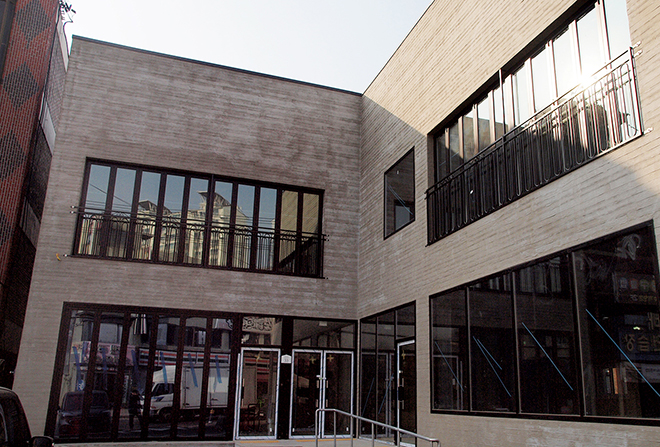

  • Smart Folding Door(Window Type) Image2

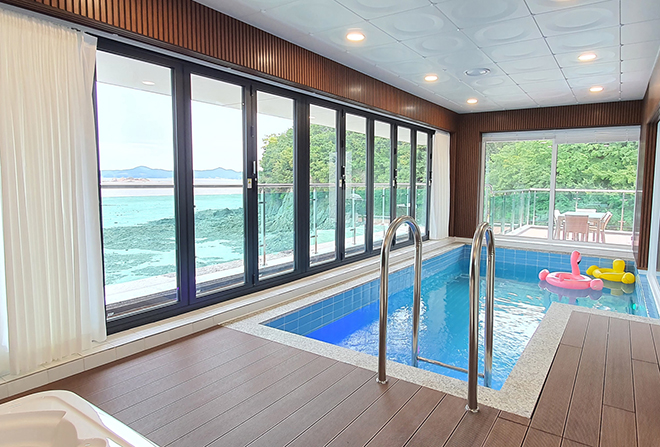

  • Smart Folding Door(Window Type) Image3
  • Smart Folding Door(Window Type) Image4
  • Smart Folding Door(Window Type) Image5
  • Smart Folding Door(Window Type) Image6
  • Smart Folding Door(Window Type) Image7

1 / 10

Smart Folding Door (Window Type)

Folding doors used as a window; Built with window-type lower rails, not regular lower rails; the window-type doors, installed where people cannot get in or out, prevents rain penetration and blocks the wind.

Product Details

Model Indoor / Outdoor Frame material Aluminum (AL.6N01) profile
Max. door Width 700mm Coating Fluororesin coating
Max. door Height 3000mm Colors Black, White, Silver, others
Max. number of panels 30 (right, left: 15 panels each) Running Device Upper/lower track runner
Glass size 8mm, 16mm, 22mm, 24mm Locking device Standard smart handle
Glass type Tempered glass, Transparent glass, Insulated glass, etc Locking type Simultaneous upper and lower tightening

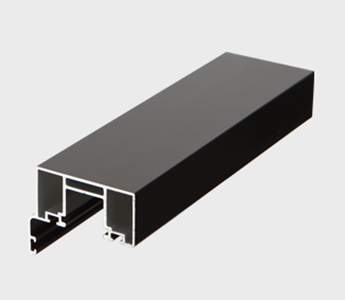

  • 상부레일

    알루미늄(AL-6N01) 고합금 재질로 손상 및 마모율이 적게 설계되었으며 상부런너가 가이드역할을 할 수 있도록 설계됨

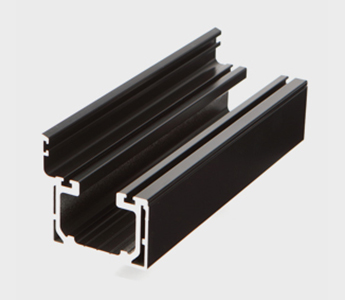

  • 하부레일

    알루미늄(AL-6N01) 고합금 재질로 손상 및 마모율이 적게 설계되었으며 빗물침투와 바람을 막아줄 수 있도록 설계됨

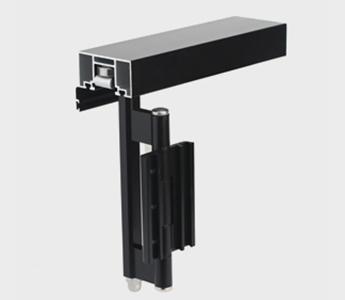

  • 상부레일 + 런너

    알루미늄(AL-6N01) 고합금 재질과 베어링 롤러 형태로 레일을 타고 주행시 부드럽게 개폐 할 수 있도록 설계

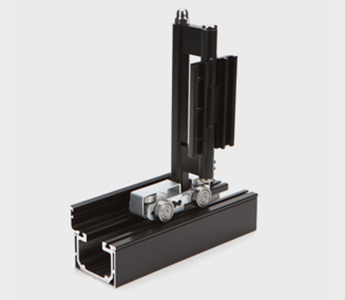

  • 하부레일 +
    중심바세트

    알루미늄(AL-6N01) 고합금 재질과 베어링 롤러 형태로 레일을 타고 주행시 부드럽게 개폐 할 수 있도록 설계 되었으며 런너가 이탈을 하지 않도록 안전하게 설계됨

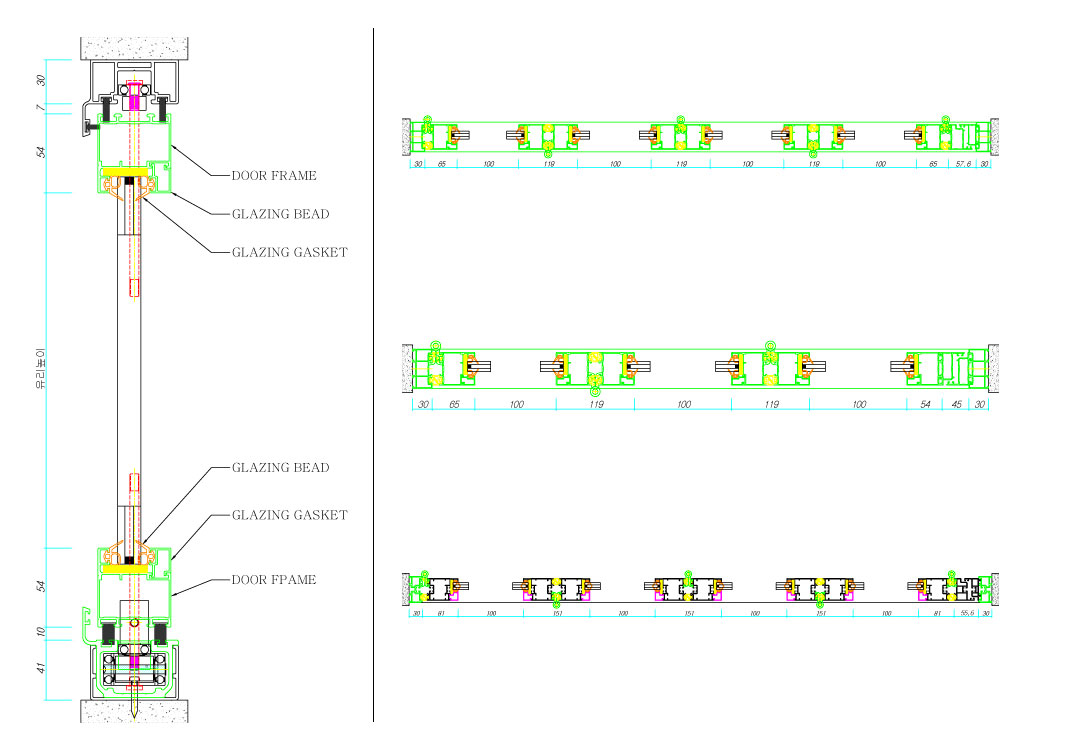

Design Drawing

Design Drawing
