System Door (90mm)F Z - S D 7 0 A
System Door (90mm)
Suitable for an entry door of residential or commercial facilities; features polyamide insulation that improves thermal insulation and air tightness; three locks can be used for security; an upgrade version of the existing 70mm products
Product Details
| Model | Indoor / Outdoor | Frame material | Aluminum (AL.6N01) profile |
| Max. door Width | 1000mm | Coating | Fluororesin coating |
| Max. door Height | 3000mm | Colors | Black, White, others |
| Max. number of panels | Right, left 1 panel each, doors can be opened both sides. | Running Device | Hinge type with 90-degree movement |
| Glass size | 8mm, 16mm, 22mm, 24mm, 28mm, 32mm, 41mm | Locking device | Lateral key device |
| Glass type | Tempered glass, Transparent glass, Insulated glass, Triple glass, etc | Locking type | Key-lock method |

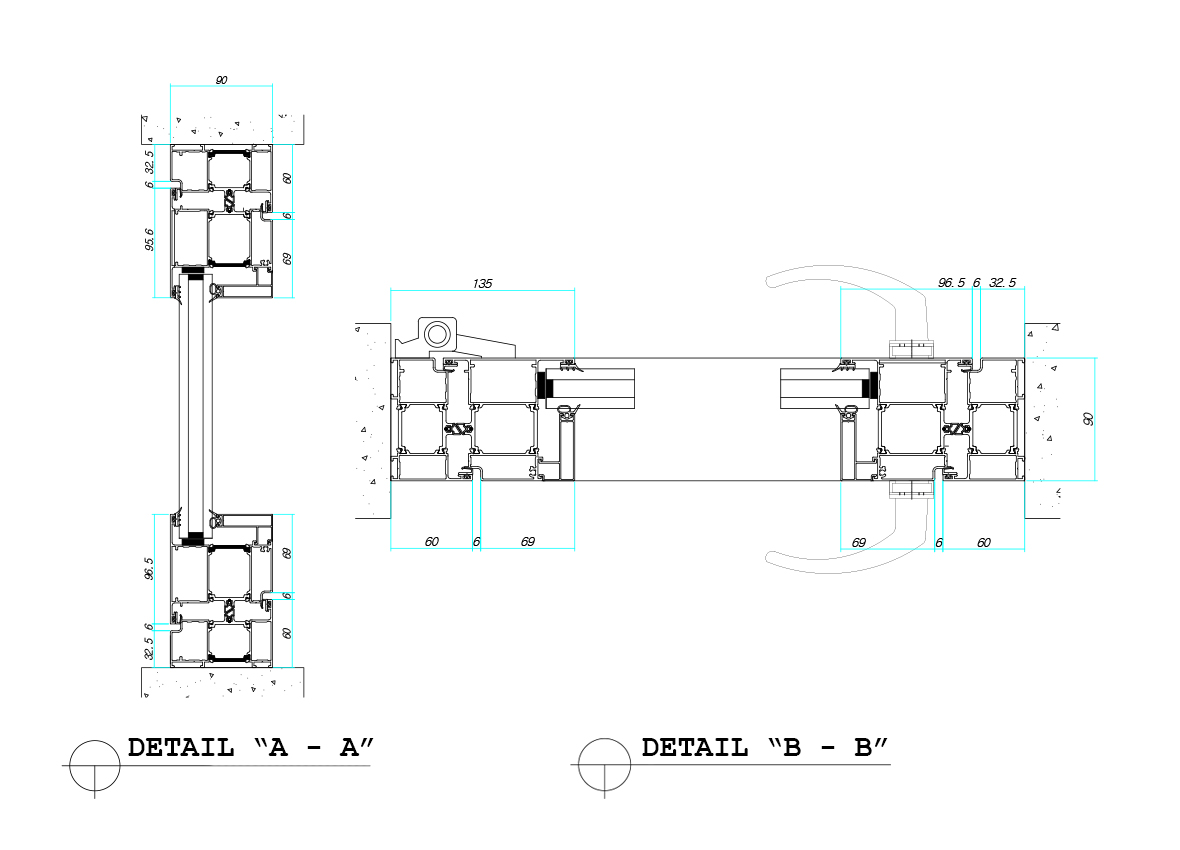

Design Drawing
