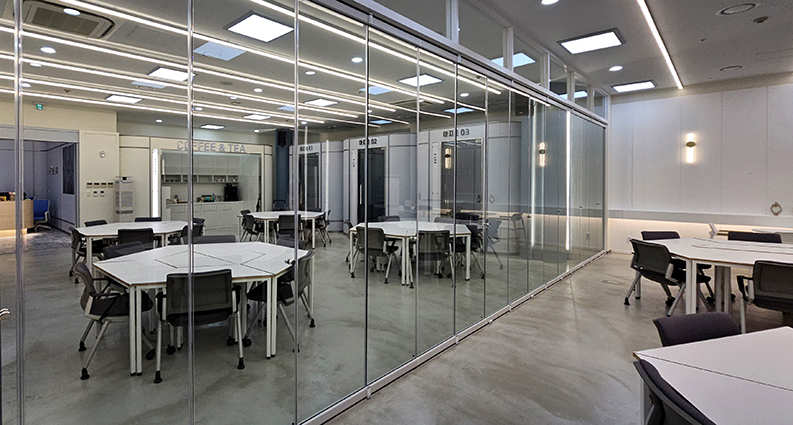

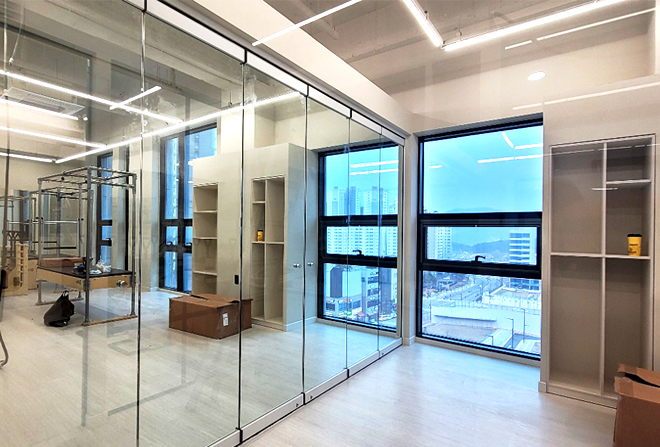

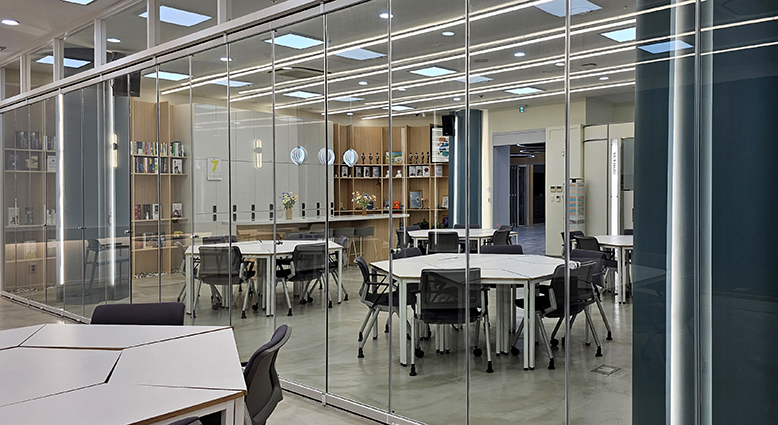

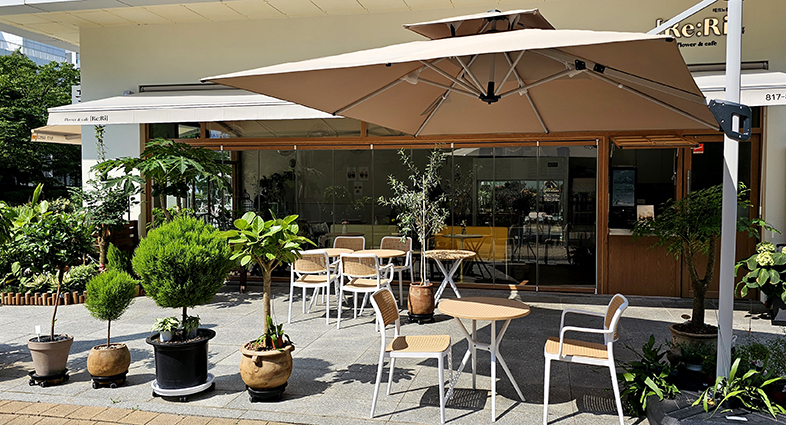

Glass Folding Door

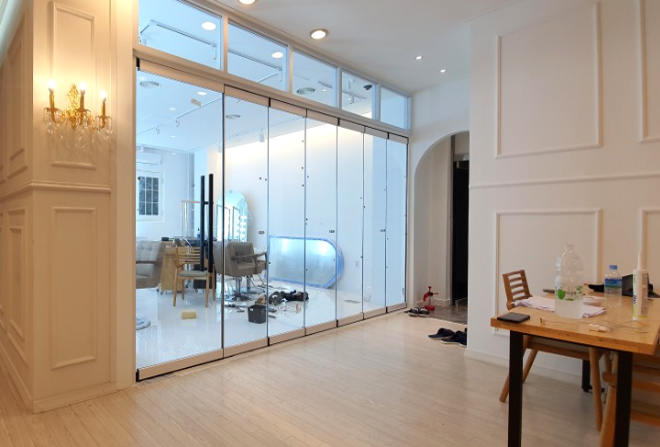

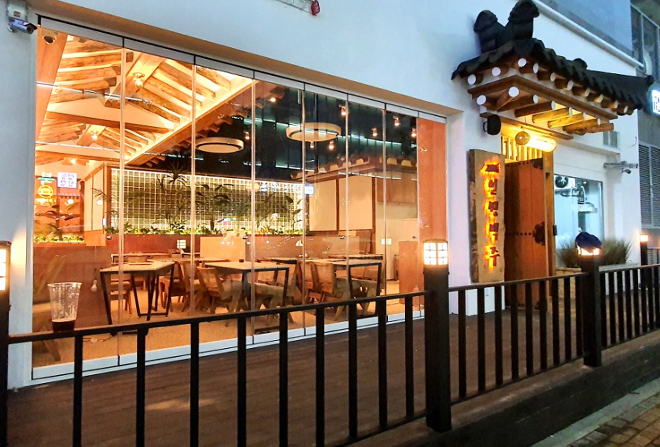

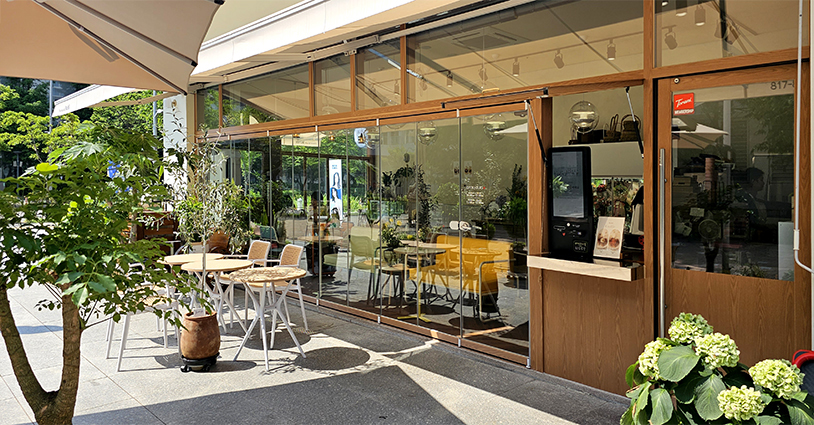

It is a foldable door made of tempered glass, and unlike general folding doors, it is a frameless door that does not have a vertical bar on the door. It is an interior item that is greatly loved in commercial, office, and residential spaces with a cool sense of openness and eye-catching design.

Product Details

Model Indoor / Outdoor Frame material Aluminum(46mm) profile
Frame size Upper W60XH40 / Side W60XH30 / Lower W60XH40 Door Floor hinged reinforced door
Glass type 10~12T tempered glass Glass color Transparent (option: green, blue, brown)
Installation Restrictions Max. width 400mm~650mm / Max. height 1000mm~3000mm Coating Fluororesin coating

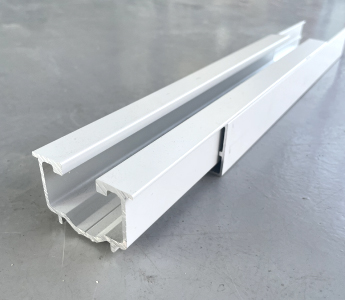

  • Upper/lower rails

    The frame is the most suitable for safe and complete operation of the glass folding door. Effectively distributes the force to the upper and lower parts to ensure smooth operation of the door

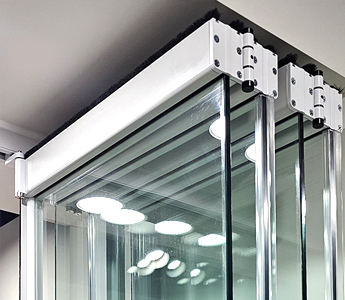

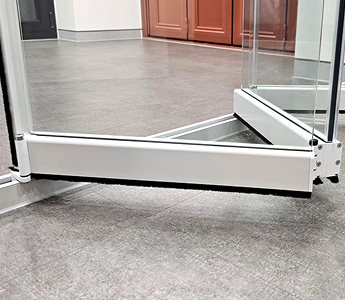

  • H-BAR

    The tempered glass is completely fixed at the top and bottom, showing a stable and unshakable driving feeling

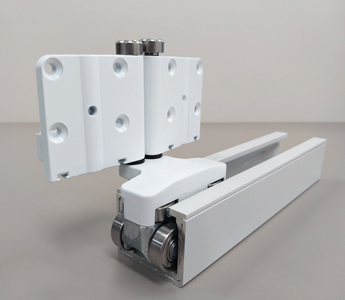

  • Stainless Steel Bearings

    Stainless steel bearings are applied to the bottom of the frame to provide a smooth and steady stability. Due to the nature of the stainless steel material, it can be used semi-permanently

  • Tempered glass

    Glass that has been heat-treated to harden the sheet glass to withstand shocks or sudden changes in temperature. Tempered glass is used for its size, which is more resistant to impact than ordinary glass, and is durable

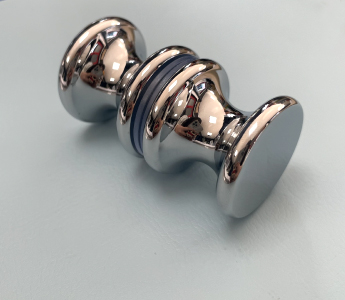

  • Tempered glass handle

    It goes well with the basic design of the handle and the design of the simple folding glass, and has excellent grip and convenience

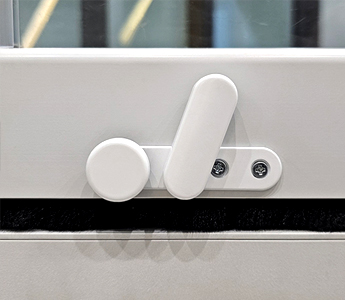

  • Locking devices

    A button-type lock that can be conveniently used using feet without the need for hands. Press the bottom button to open the door, and lower the bottom lever next to the button to lock the door

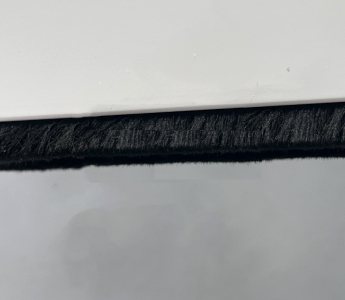

  • Mohair

    High-quality mohair is attached to the top and bottom of the H-BAR to block small dust and insects from the air to maintain a more comfortable environment

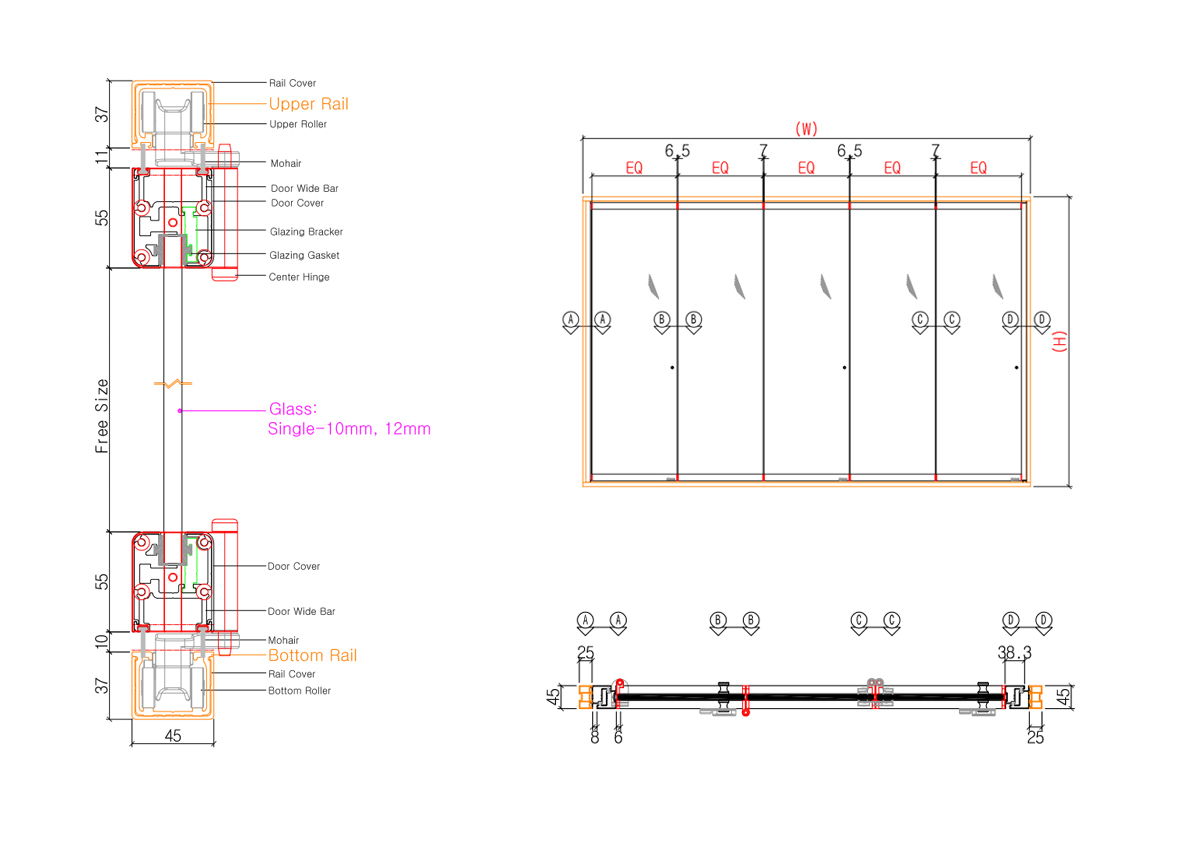

Design Drawing

Design Drawing
