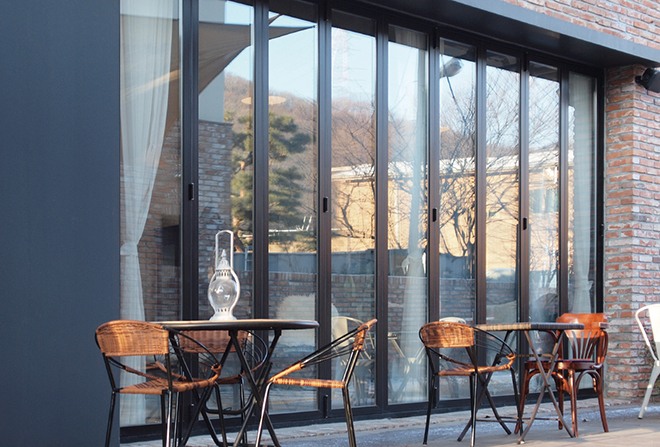

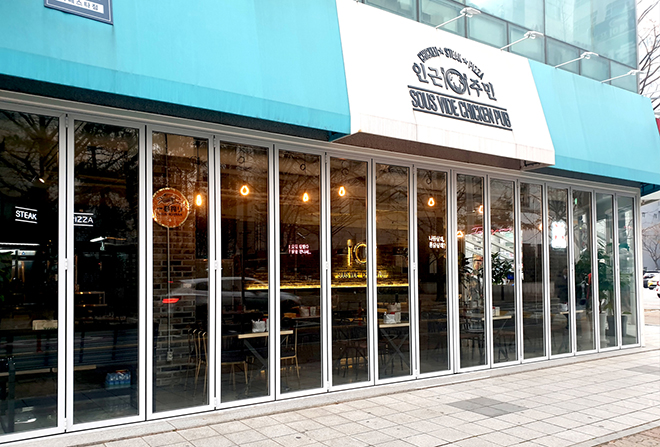

Insulated Folding Door

The insulated folding door features polyamide insulation, which reduces energy loss and limits condensation caused by the high thermal conductivity of aluminum, and thereby enhance thermal insulation with less concern for condensation.

Product Details

Model Indoor / Outdoor Frame material Aluminum (AL.6N01) profile
Max. door Width 800mm Coating Fluororesin coating
Max. door Height 4500mm Colors Black, White, Silver, others
Max. number of panels 30 (right, left: 15 panels each) Running Device Upper/lower track runner
Glass size 8mm, 16mm, 22mm, 24mm, 28mm, 32mm, 41mm Locking device Standard smart handle
Glass type Tempered glass, Transparent glass, Insulated glass, Triple glass, etc Locking type Simultaneous upper and lower tightening

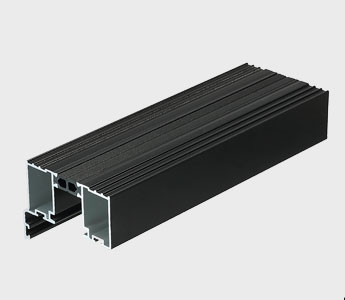

  • Upper Rail

    Made of high-strength aluminum alloy (AL-6N01) to reduce damage and wear; features polyamides insulation; the upper runner is designed to serve as a guide.

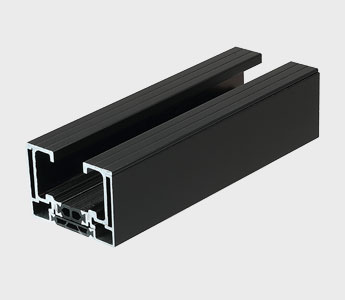

  • Lower Rail

    Made of high-strength aluminum alloy (AL-6N01) to reduce damage and wear; features polyamides insulation; the lower runner is designed to serve as a guide.

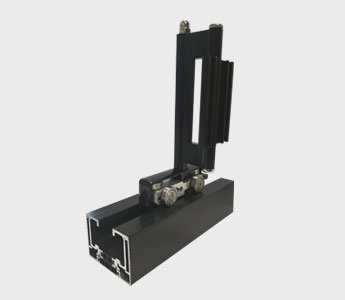

  • Upper Rail

    Features high-strength aluminum alloy (AL-6N01); the bearing rollers, mounted on the rail, ensures smooth opening and closing.

  • Lower Rail

    Features high-strength aluminum alloy (AL-6N01); the bearing rollers, mounted on the rail, ensures smooth opening and closing; designed to prevent the runner from coming off the rail, for safety purpose.
