SMART FOLDING DOOR

BEGINNING OF A NEW FOLDING, FOLZEN

System Door (70mm)F Z - S D 7 0

  • System Door(70mm) Image1
  • System Door(70mm) Image2
  • System Door(70mm) Image3
  • System Door(70mm) Image4
  • System Door(70mm) Image5

1 / 10

System Door (70mm)

Suitable for an entry door of residential or commercial facilities; features polyamide insulation that improves thermal insulation and air tightness.

Product Details

Model Indoor / Outdoor Frame material Aluminum (AL.6N01) profile
Max. door Width 1000mm Coating Fluororesin coating
Max. door Height 3000mm Colors Black, White, others

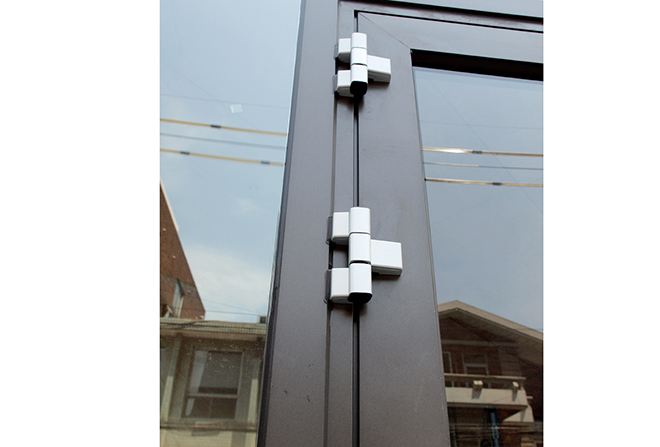

Max. number of panels Right, left 1 panel each Running Device Hinge type with 90-degree movement

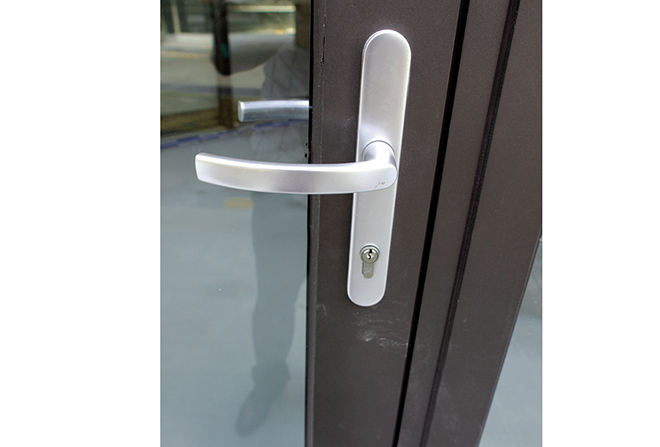

Glass size 8mm, 16mm, 22mm, 24mm, 28mm, 32mm Locking device Standard smart handle
Glass type Tempered glass, Transparent glass, Insulated glass, Triple glass, etc Locking type Simultaneous upper and lower tightening

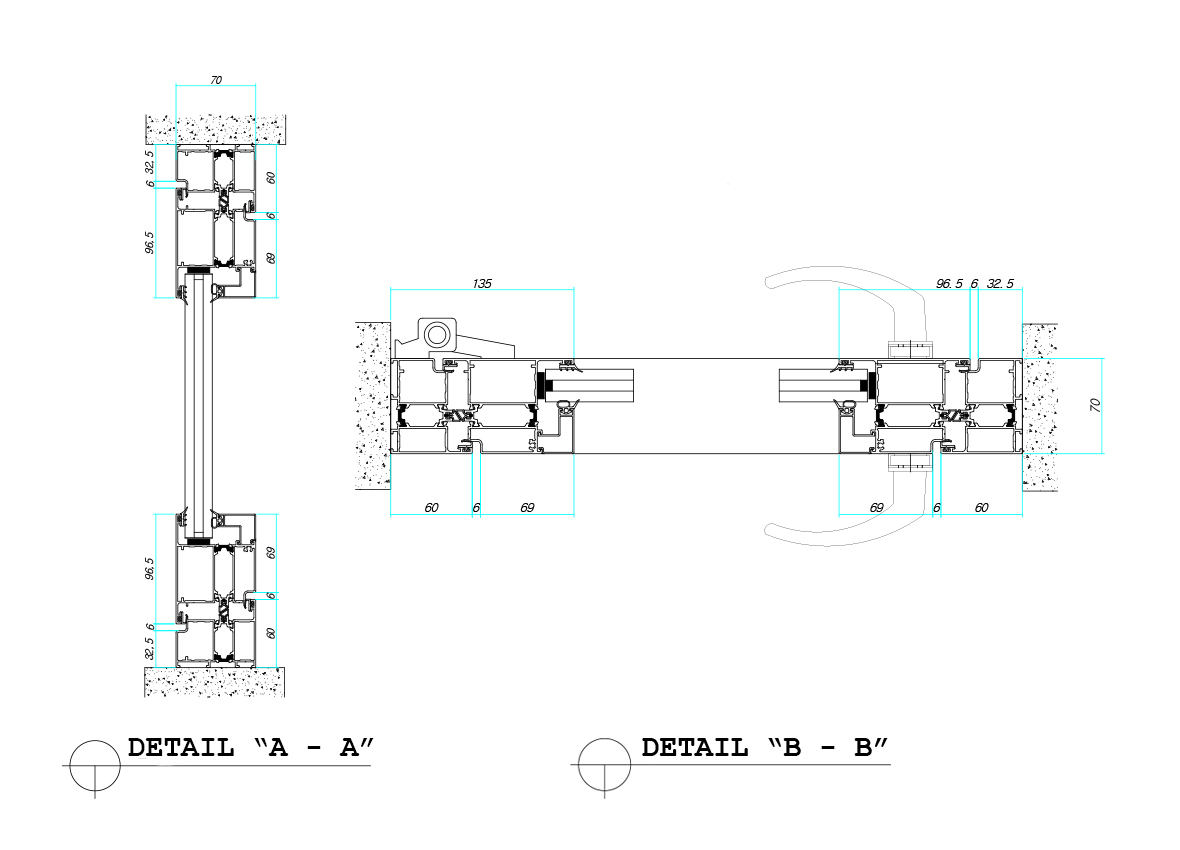

Design Drawing

제품 상세도면
