Folding Door Extension System (Fixed Window)FOLZEN KOREA

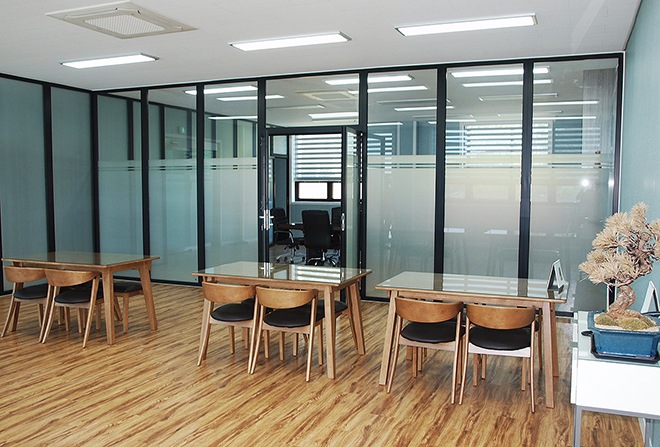

  • Folding Door Extension System(Fixed Window) Image1

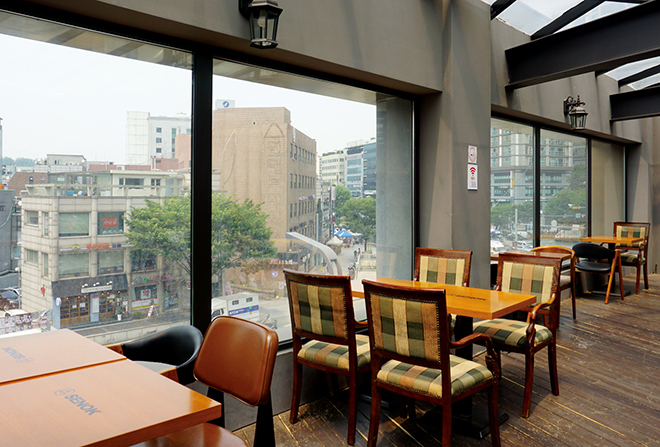

  • Folding Door Extension System(Fixed Window) Image2

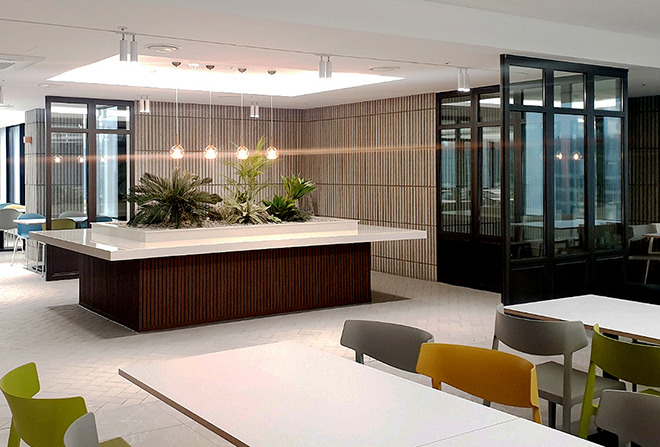

  • Folding Door Extension System(Fixed Window) Image3

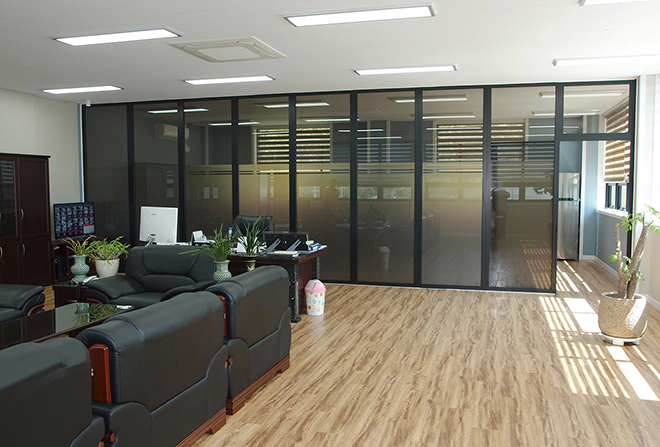

  • Folding Door Extension System(Fixed Window) Image4

1 / 10

Folding Door Extension System (Fixed Window)

System that can be used as a fixed window, not compatible with folding doors; built with the same doors and glasses that are used for folding doors, except for other hardware that are used to make folding doors.

Product Details

Model Indoor / Outdoor Frame material Aluminum (AL.6N01) profile
Max. door Width 1200mm Coating Fluororesin coating
Max. door Height 3000mm Colors Black, White, Silver, others
Max. number of panels More than 30 panels Running Device None
Glass size 8mm, 16mm, 22mm, 24mm Locking device None
Glass type Tempered glass, Transparent glass, Insulated glass, etc Locking type None
  • Upper Rail

    Made of high-strength aluminum alloy (AL-6N01) to reduce damage and wear; features polyamides insulation; the upper runner is designed to serve as a guide.

  • Lower Rail

    Made of high-strength aluminum alloy (AL-6N01) to reduce damage and wear; features polyamides insulation; the lower runner is designed to serve as a guide.

  • Upper Rail + Runner

    Features high-strength aluminum alloy (AL-6N01); the bearing rollers, mounted on the rail, ensures smooth opening and closing.

  • Lower Rail +
    Middle Bar Set

    Features high-strength aluminum alloy (AL-6N01); the bearing rollers, mounted on the rail, ensures smooth opening and closing; designed to prevent the runner from coming off the rail, for safety purpose.

Design Drawing

Design Drawing
